USI致力于提供具备各项连网技术(WiFi, BT, IoT, LoRa & WWAN)之模块,以协助客户在物联网相关产品获得有效的解决方案,并进一步提供 D(MS)2(Design & Manufacturing Services Plus Miniaturization & Solutions)。USI 拥有全面的设计能力和先进的封装技术,是您下一代产品的最佳合作伙伴。我司具备以下能力:

  • 设计:电路布线/封装设计/机电模拟/热模拟/除错和调试/天线设计
  • 制造技术:高密度SMT/成型封装/溅镀屏蔽封装
  • 测试和合格认证:工程测试/合格测试/可靠性测试/生产测试/失效分析
  • 法规和自愿性承诺测试:通过内部自愿性承诺初测/第三方实验室进行 UL/FCC、PTCRB/现场测试和营运商测试
  • 先进的封装技术:堆栈,双面/晶圆凸块/嵌入被动件/主动件/天线整合/先进互连/封模底部填胶 (MUF)
Universal Scientific Industrial


物联网(IoT) 是嵌入电子元件、软体、感测器、执行器和网路连接等支援物体收集和交换资料的功能的物理设备、车辆「连接设备」和「智慧设备」 、建筑物以及其他设备所组成的互联网。

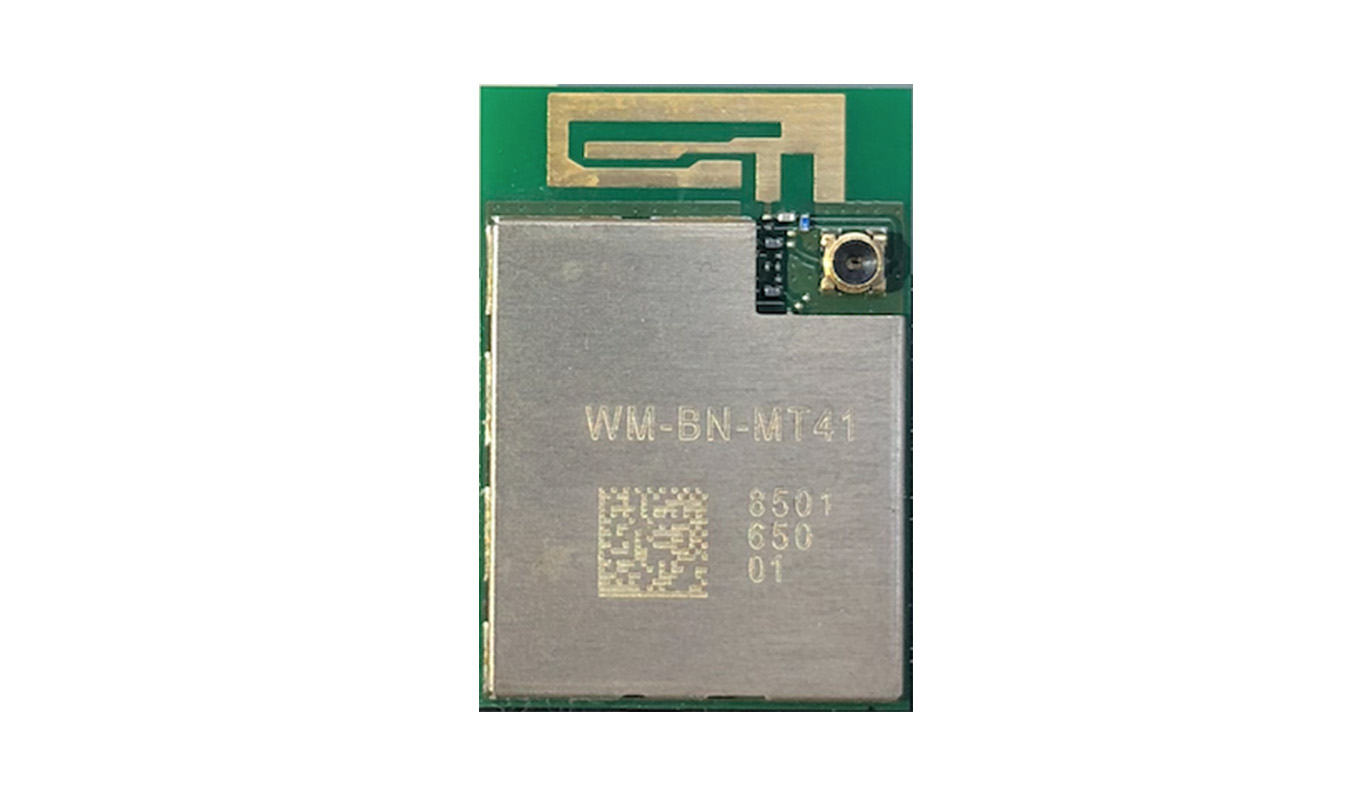

The WM-BAN-MT-41 embedded IoT SiP module is uniquely suited for Internet-of-Things applications. It supports all rates specified in the IEEE 802.11 a/b/g/n specifications and Bluetooth 4.2 compliant. The module is based on MediaTek MT7697HD chipset. The low power consumption and excellent radio performance make it the best solution for embedded 802.11a/b/g/n dual-band WiFi requirements such as industrial and wireless home devices. The module includes an ARM Cortex-based applications processor, a single stream IEEE 802.11n MAC/baseband/radio, a dual-band 5 GHz and 2.4 GHz transmit power amplifier (PA). It also supports optional antenna diversity for improved RF performance in difficult environments. It can be optionally configured with a Bluetooth 4.2-compliant, stand-alone baseband processor with an integrated 2.4 GHz transceiver.
  • ARM Cortex-M4 CPU with FPU, up to 192MHz clock speed
  • 352KB of SRAM and 64KB boot ROM
  • 4MB Quad Peripheral Interface(QPI) mode SIP serial flash
  • 28 GPIOs multiplexed with other interfaces
  • Bluetooth Core Specification Version 4.2 with provisions for supporting future specifications
  • Bluetooth Class 1/Class 2 transmitter operations.
  • Interface support: host controller interface (HCI) using a high-speed UART interface
  • Full IEEE 802.11a/b/g/n legacy compatibility with enhanced performance.
  • Lead Free design, Green design requirement, RoHS Compliance, and halogen-free
Datasheet Download
